Calculiclast®
The pneumatic lithotripter uses high-pressure air pulses to efficiently break kidney and ureteral stones during urological procedures. Its compact design ensures precise stone fragmentation with minimal tissue damage and heat generation.
Innovative Design
High Efficiency
Precise fragmentation
Portable and Compact
Calculiclast®, the pneumatic lithotripter was designed and developed in India in 1994.
The device operates by generating high-pressure air pulses which are delivered through probe to fragment urinary stones. The mechanism is highly efficient, capable of breaking even larger stones into small fragments.
The precise and minimum forward movements of the probe minimize stone flying ensuring minimal tissue damage.
Adjustable pneumatic pressure allows the user to adjust the power of the blast.
The device is provided with special accessories and probes for fragmentation of renal and bladder stones. Adaptors can be provided to connect the machine to central connection.
The device comes with an option of oil less, noiseless computer mounted on a powder coated trolley.
Reliability
in every procedure.
With numerous installations and countless procedures done,
the Pneumatic Lithotripsy system is trusted by many healthcare providers around the world
Installations
0%Models installed till now
Procedures
0%Procedures done till now

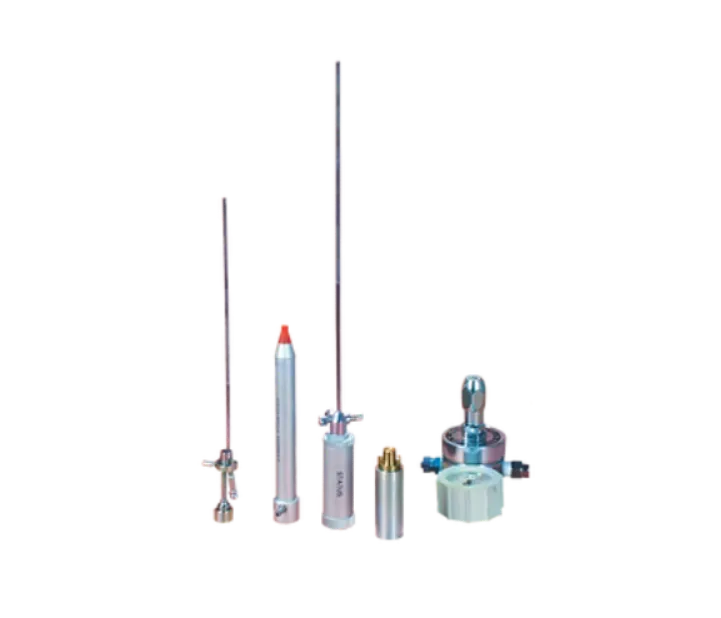

Probes:
0.8mm, 1mm, 1.2mm probes for ureterorenoscopy
1.5mm probes for bladder stones
2mm probes for renal stones

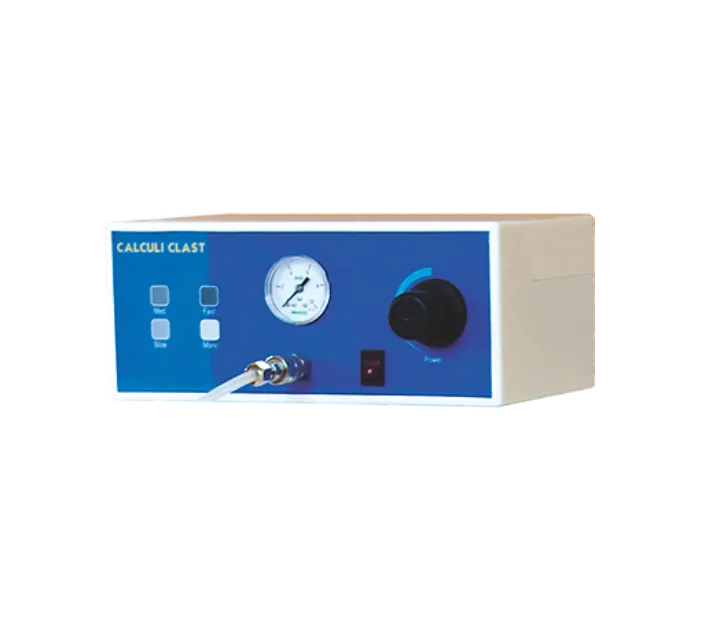

Control Unit:
| Power Supply | 230 VAC, 50 Hz |
| Working Pressure | 1.8 to 4 Kg/Cm2K |
| Maximum input pressure | 6 Kg/Cm2 |
| Pressure source | Pressurised oxygen/Compressed air |
Hand Piece:
| Dimension (Dia x length) | 24x180mm |
| Weight | 150 gms |
Optional accessory:
Air Compressor mounted on powder coated trolley:
| Input Voltage | 230V |
| Output Pressure | 4 kg/cm2 |
| Airflow | 30 liter/min |
Regulatory Approval:
- Approved by CDSCO for manufacturing license, adhering to national regulatory requirements for medical devices.
- Safety Compliance: Certified according to IEC 60601-1, ensuring the highest standards for electrical medical equipment safety.
Advantages of Calculiclast:
-
Pneumatic energy breaks down the stones effectively into smaller, passable fragments.
-
The precise pneumatic mechanism allows to target the stones with minimal impact on surrounding tissues.
-
Compared to other stone-breaking technologies, pneumatic lithotripters are more affordable, making them accessible to a broader range of healthcare facilities.
-
The compact design is ideal to use in clinical settings as it allows for easy transportation and setup.
-
Designed with simplicity and ease of use in mind, it allows for straightforward operation by medical professionals, requiring minimal training.
We have been using the Calculiclast-Pneumatic Lithotripter from Status Medical Equipments India Pvt Ltd. for the past 3 years, and it has consistently proven to be both effective and reliable. The enhanced hand tool design is a standout feature, and the system itself is easy to operate. Additionally, the support provided by their team has been prompt and dependable.
Asian Institute of Nephrology & Urology, Secunderabad
For the past 2 years, we've been using the Calculiclast Pneumatic Lithotripter from Status Medical Equipments India Pvt Ltd., and it has consistently delivered excellent performance. Its improved hand tool design ensures ease of use, while the system’s efficiency in stone fragmentation stands out.
Sugam Multi speciality Hospital, Kumbakonam
We've used the Calculiclast Pneumatic Lithotripter from Status Medical Equipments India Pvt Ltd. for the past 4 years, and it has consistently proven effective and reliable. Their team’s support has been prompt and dependable throughout.
